Air heater LE-R
Air heater
Universally applicable air heater for high air volumes from 3-18kW
Your benefits
- Air volume throttle damper on inlet or outlet side
- Outlet flange plate is manufactured according to customer specifications
- Connecting flanges for inlet and outlet are manufactured according to customer specifications.
- Mounting brackets

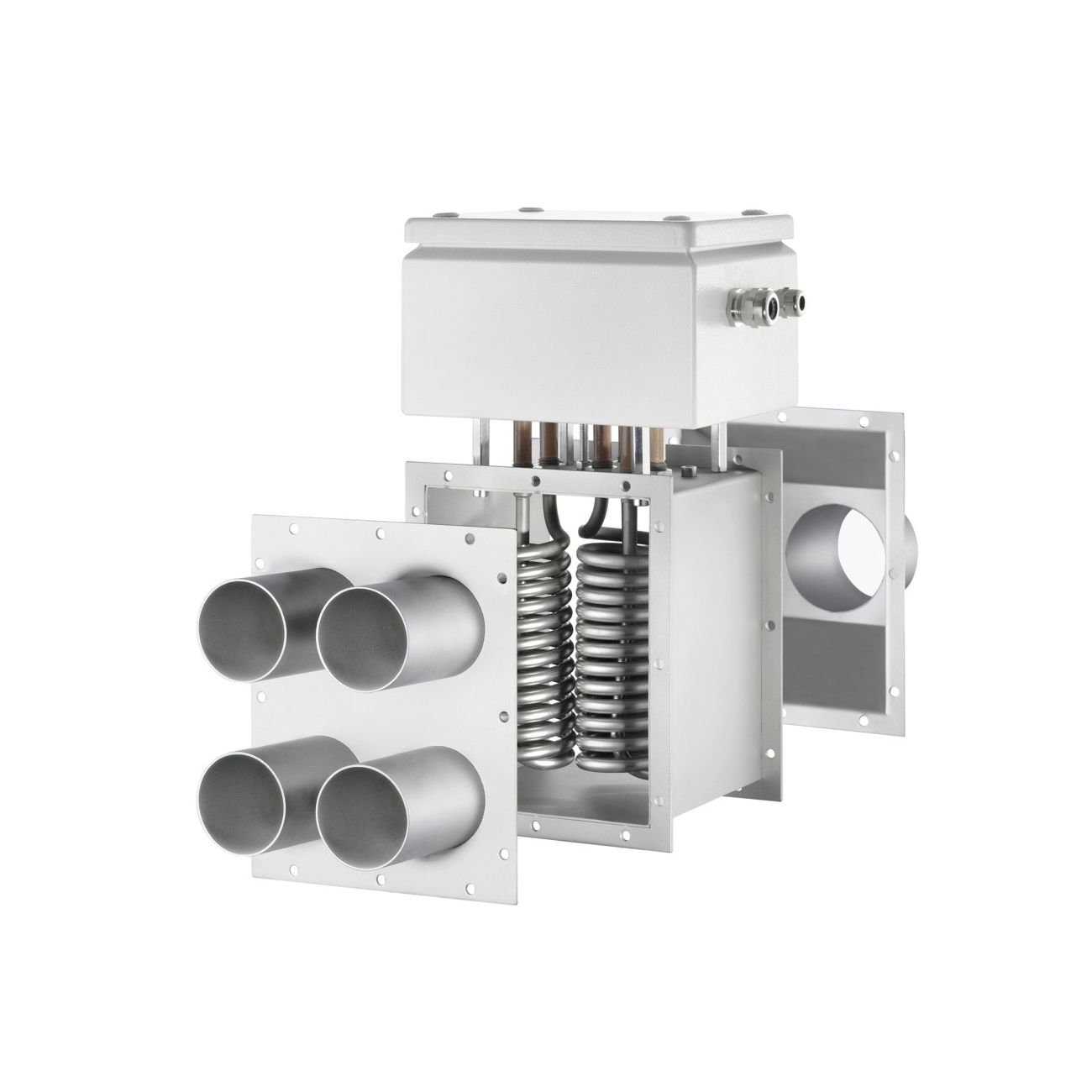

- Nozzles for hot air distribution, special systems on request
- DIN-compliant overtemperature protection relay has an adjustable cut-off temperature
- Temperature sensor Pt 100 C600 on outlet side
- Temperature sensor NiCr-Ni or similar on outlet side

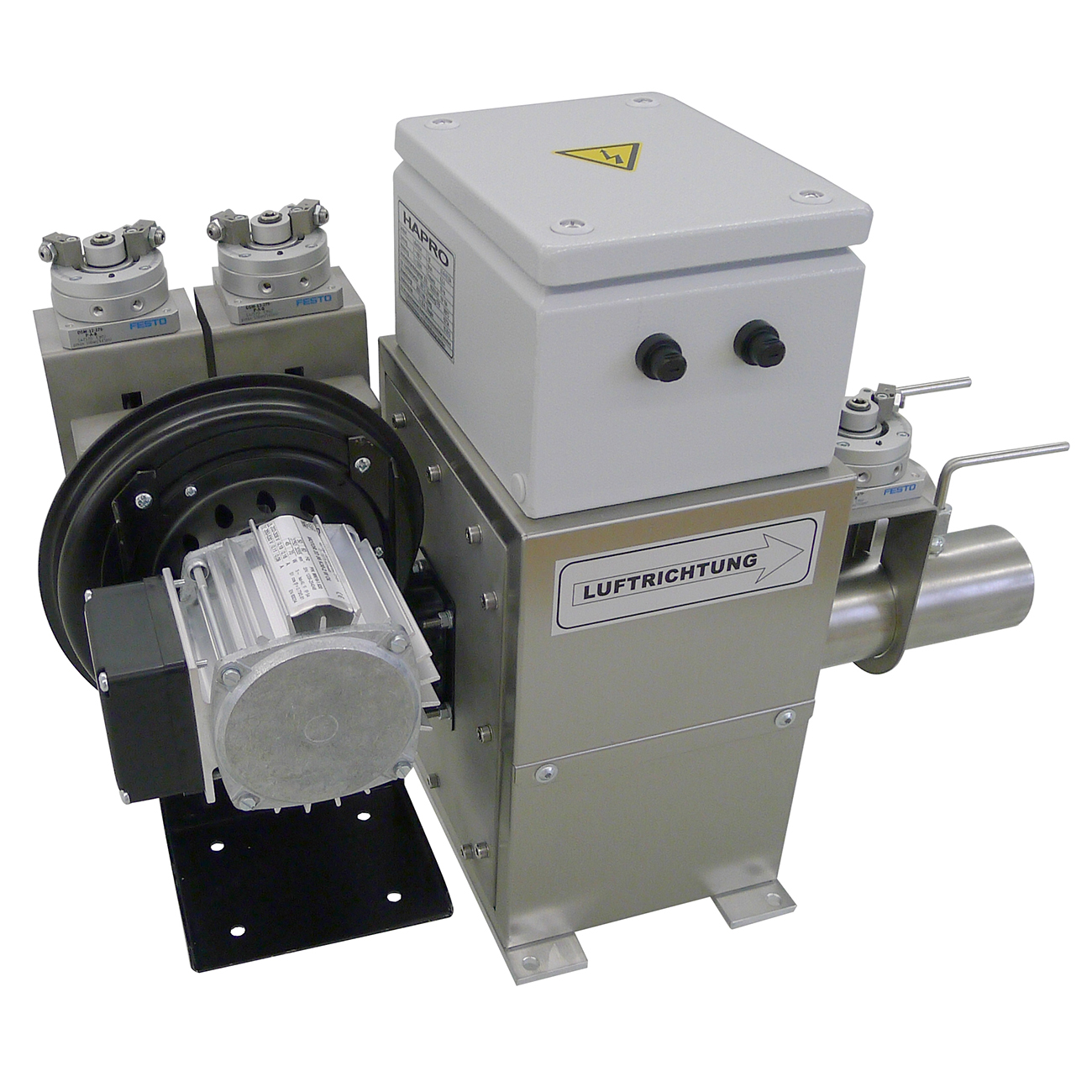

- Air flow monitoring on inlet side by means of differential pressure switch, pressure-wave switch or air flow monitor
- Temperature control by means of electronic controllers
- Power electronics: Solid-state relay complete with heat sinks
Description

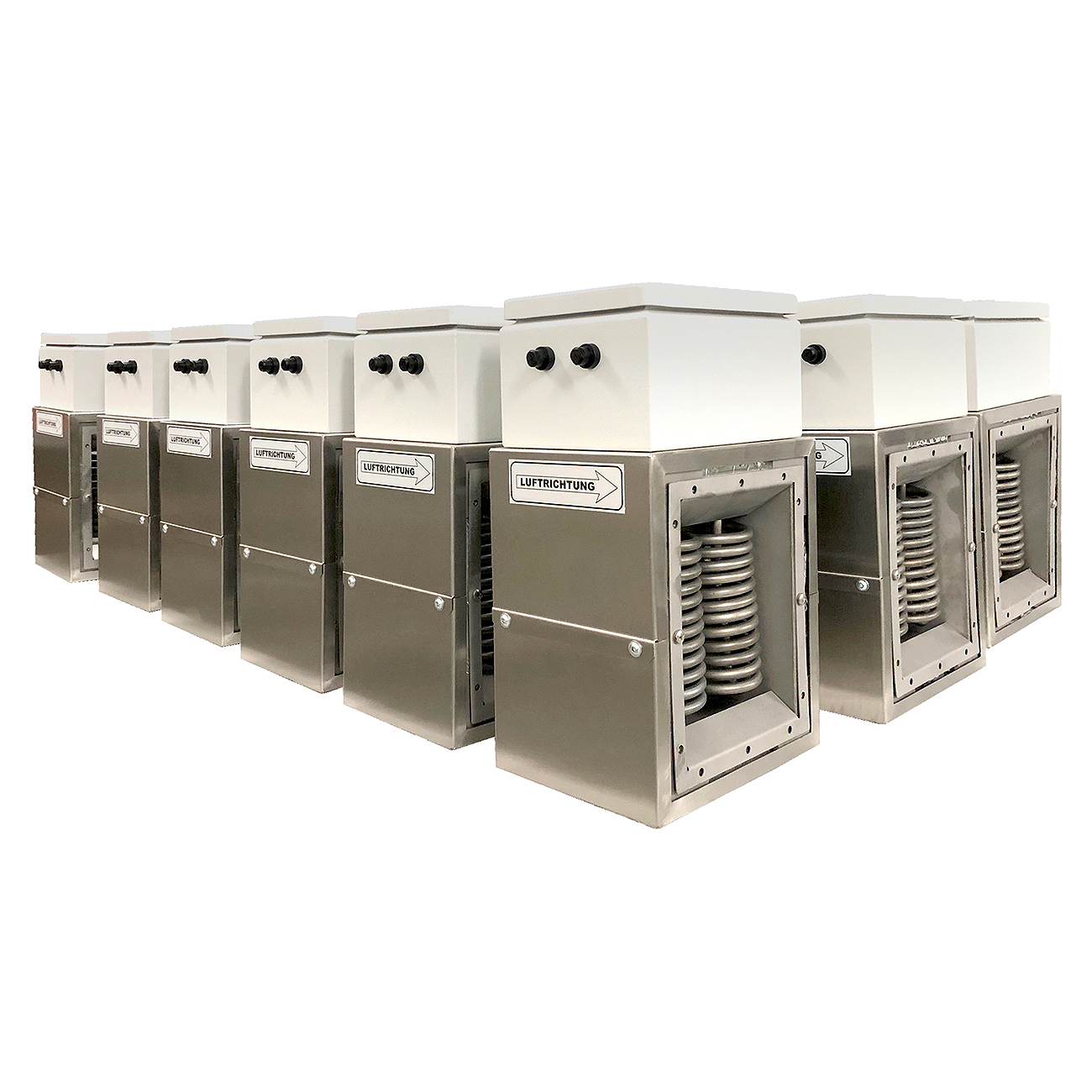

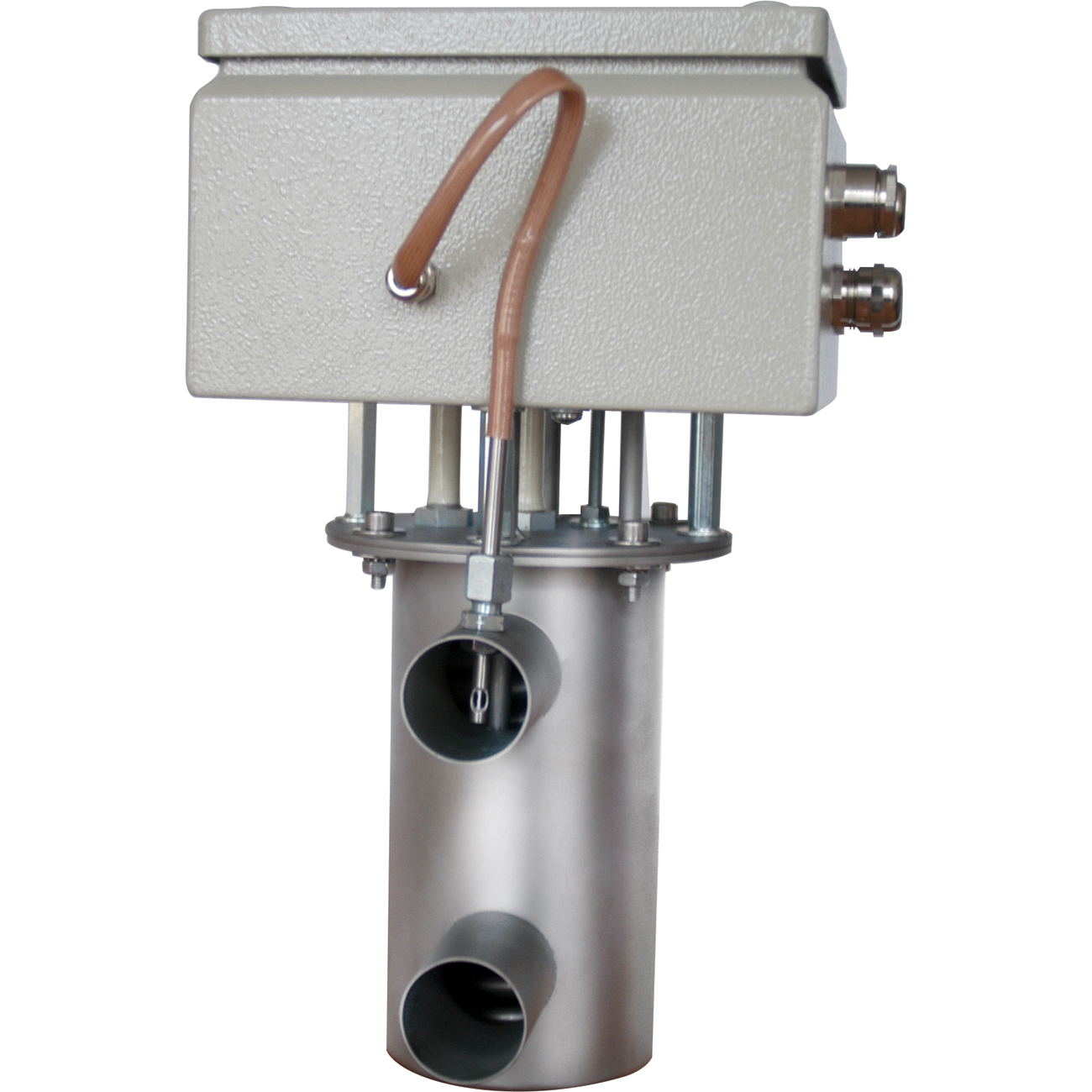

The electrically powered air heaters of the LE-R series can be used universally, e.g. in drying systems, hot air shrink systems, heating cabinets, hot air ducts and preheating systems. The heating elements and housings are made of high-quality stainless steel, which is why they heat dry, moist and mildly aggressive air as well as nitrogen in fresh air or recirculating air operation. The equipment is easy to control and, with its compact dimensions, can be installed with only a small footprint. Since the return of hot air is possible with HAPRO air heaters, they are very energy efficient. All versions are designed for continuous operation. The devices are available with an output of 3-18kW, and special designs are possible. Customized layout pressure-resistant up to 5 bar (LE-D). Inlet temperature in recirculating operation is max. 300°C, outlet temperature is 350°C.
Do you need a bespoke design? Just ask us.
Do you need a bespoke design? Just ask us.
- Housing made of stainless steel (1.4301)
- Heating element made of stainless steel (1.4301)
- Terminal box made of powder-coated sheet steel
Optional items
- Throttle valves
Order no. 400190601 [outlet side]
Order no. 400190605 [inlet side] - Thermocouples
Order no. 40019002
Order no. 40019004 - Mounting brackets Order No. 901100

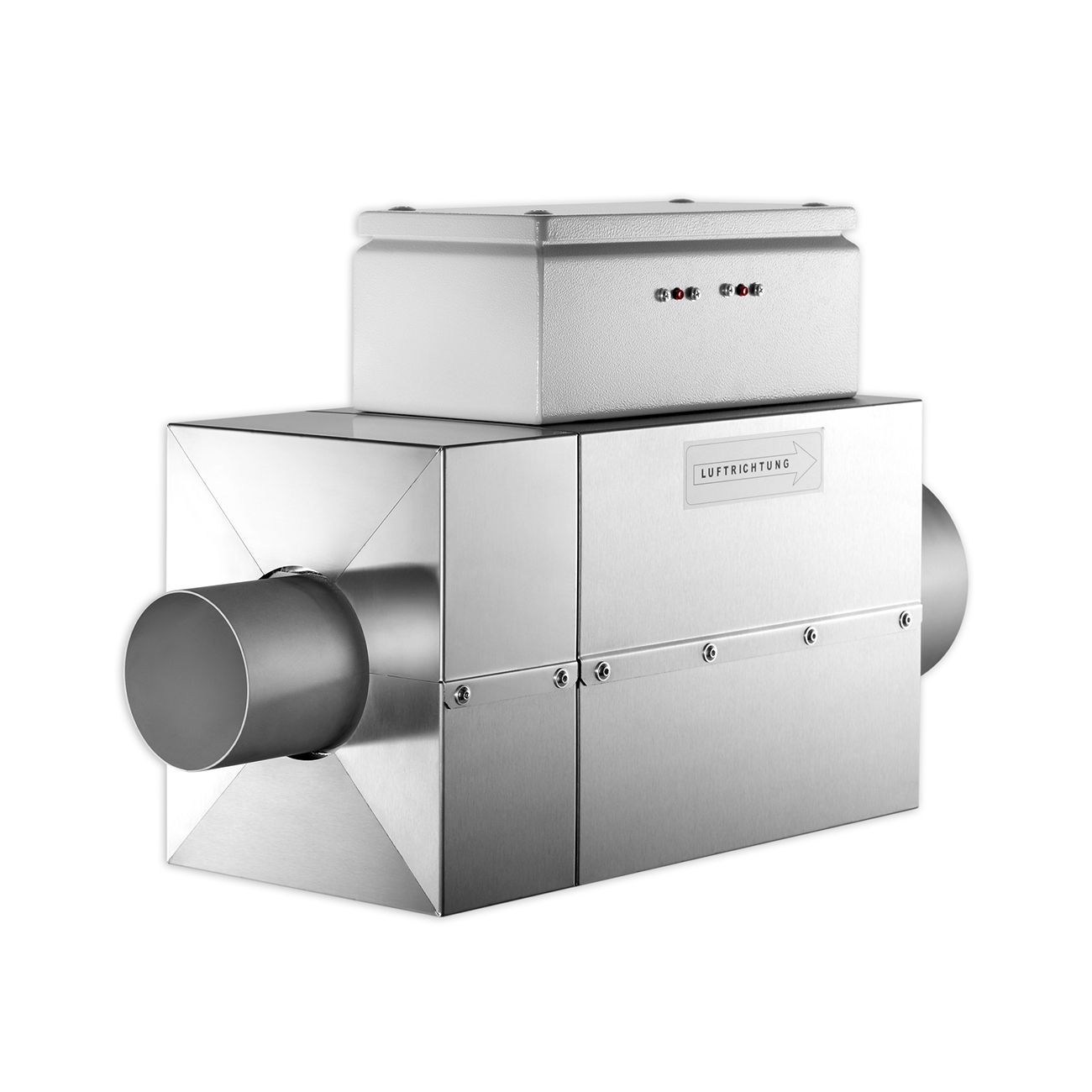

| Designation (details in mm) | Dimensions | 3 - 9kW Thermally insulated | 10 - 18kW Thermally insulated |
|---|---|---|---|
| Total height | A | 380 | 380 |
| Diameter of inlet connection | B | 150 max. | 150 max. |
| Length of outlet connector, including funnel | C | 200 | 200 |
| Total length with inlet and outlet connector | D | 564 | 728 |
| Length of inlet connector, incl. funnel | E | 200 | 200 |
| Width of the housing | F | 220 | 220 |
| Height of the housing | G | 260 | 260 |
| Diameter of the outlet connection | H | 150 max. | 150 max. |
| LE-R body | I | 164 | 328 |
| Model | Order No. | Output kW | Voltage V | Description |
|---|---|---|---|---|
| LE-R 103 | 40018103 | 3,0 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 104 | 40018104 | 4,5 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 106 | 40018106 | 6,0 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 107 | 40018107 | 7,5 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 109 | 40018109 | 9,0 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 110 | 40018110 | 10,5 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 112 | 40018112 | 12,0 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 113 | 40018113 | 13,5 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 115 | 40018115 | 15,0 | 400 | Thermally insulated, with overtemperature protection |
| LE-R 118 | 40018118 | 18,0 | 400 | Thermally insulated, with overtemperature protection |
